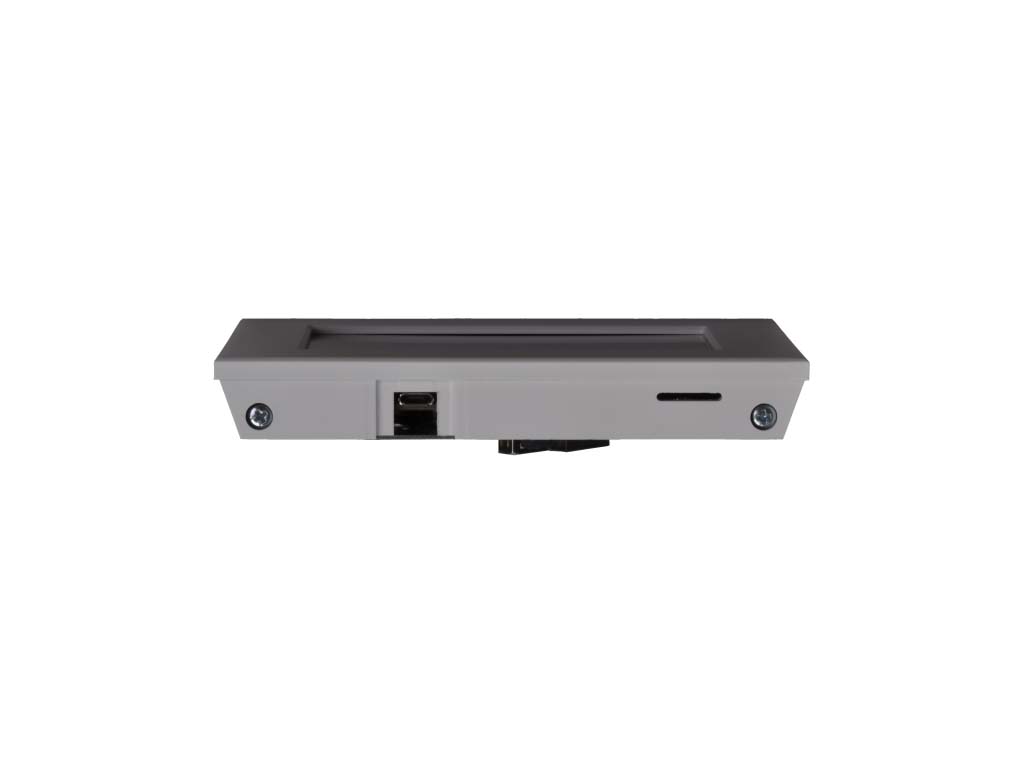

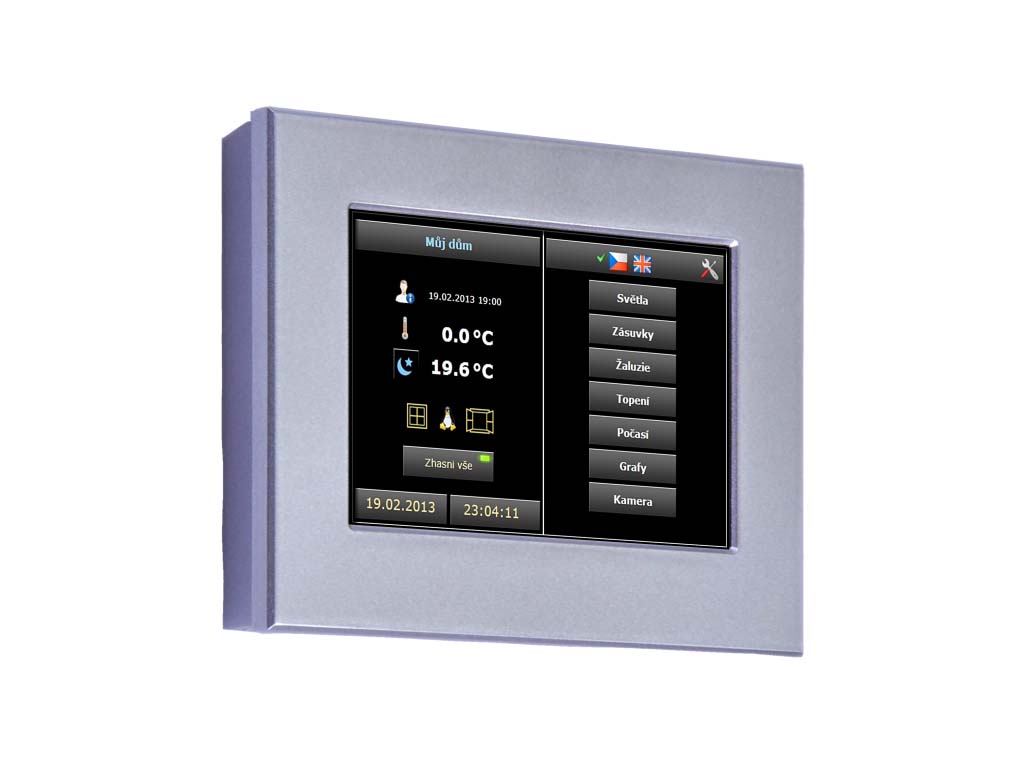

ID-31, On wall touch panel capacitive

SKU: TXN 054 44.10

Display 480x272 px
Klavesnice Touch capacitive screen
I/O
Napájení 24 V DC, PoE
COM 100Mbit Ethernet (RJ-45), RS-485

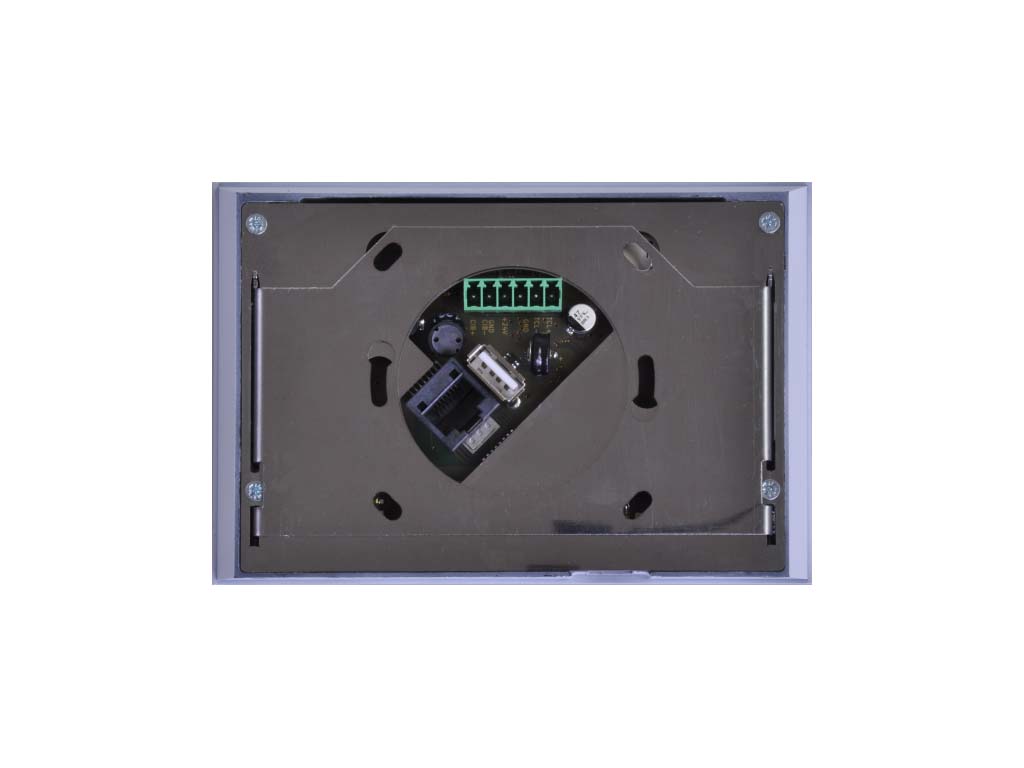

Design Wall mounting on the installation box. The box is not included in the delivery, must be ordered together with a frame whose color is optional.
Připojení Built-in Microbrowser for fast access to internal Web pages of Foxtrot and TC700 central modules.

TXN 054 44.10 ID-31, touch panel on the wall, 4.3 "TFT 480x272 pxl, Ethernet 10 / 100Base, RS-485, need to be assembled with TXF 251 05.xx
TXF 251 05.00 Front frame for ID-31, gray (Light Charcoal)
TXF 251 05.01 Front frame for ID-31, white
TXF 251 05.02 Front frame for ID-31, aluminum
TXF 251 05.03 Front frame for ID-31, anthracite
