Complete control system of a family house in Hradec Kralove
Reference
- Country: Czech Republic

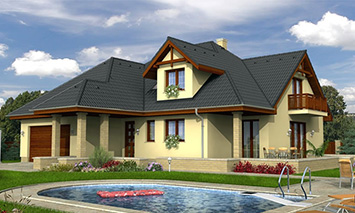

- Name: Complete control system and visualization of a family house in Hradec Kralove
- Implemented by: Lamal s.r.o.
- Date: 2008 - 2010
- Control System: Tecomat Foxtrot CP-1005 Central Unit

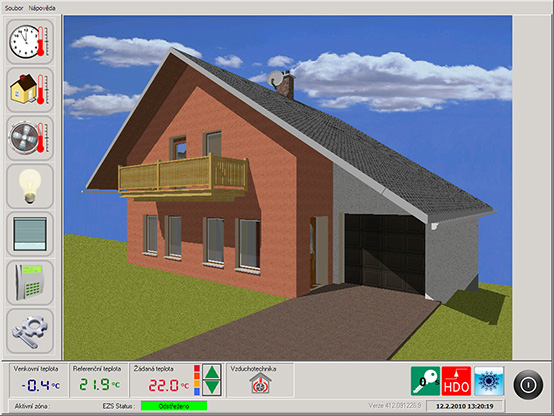

- Software: 1x Reliance 4 Control with 1,000 data points

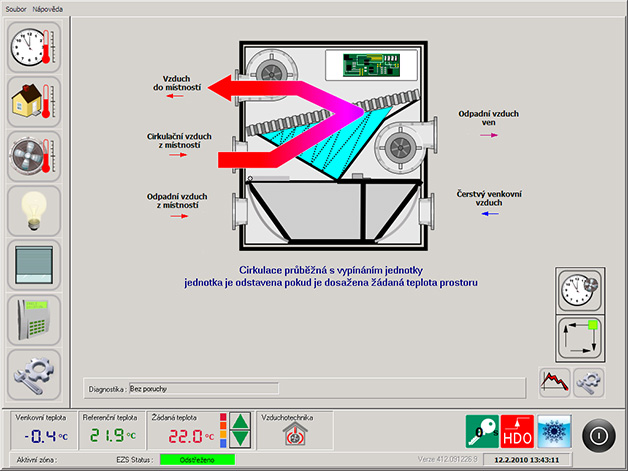

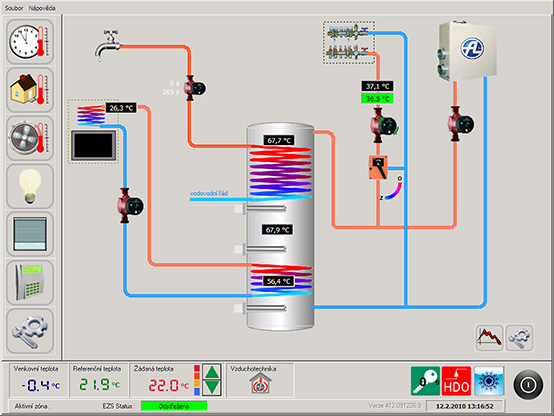

At the beginning of the implementation of this project, we faced the problem of how to integrate several different devices in the family house into a Central Control System. We needed to control a hot air heating system based on an ATREA recovery unit and an underfloor heating system including a water tank, electrical boiler and fireplace heat exchanger.

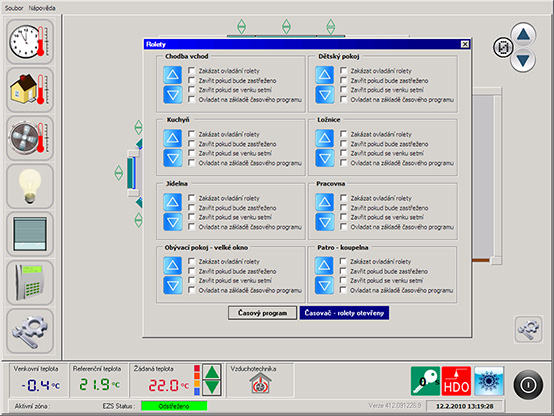

It was also necessary to control heating of a service water, including water circulation and purification. On top of that, the owner of the house wanted to install a security system, intelligent lighting system and the system for controlling of the outside sunblinds.
The result of this installation was a distribution box containing the Tecomat Foxtrot CP1005 PLC, which was placed in the basement of the house.
The full reference you may read at www.reliance.cz.
