New RFID reader C-WG-0205S on the CIB bus

29.04.2025 | Category: EN |

C-WG-0205S is designed for connecting a 13.56MHz RFID reader with an integrated antenna for reading Mifare 1k, Mifare 4k, Mifare UltraLight and NFC NTAG203 tags.

In addition to the signals for connecting the reader, the module contains 2 universal DI/AI inputs and 5 DO/PWM outputs. Further, the module allows powering of loads, for example powering of the indicator LEDs of the charging socket, and it is equipped with a 22 VDC output with a max. load of 60 mA.

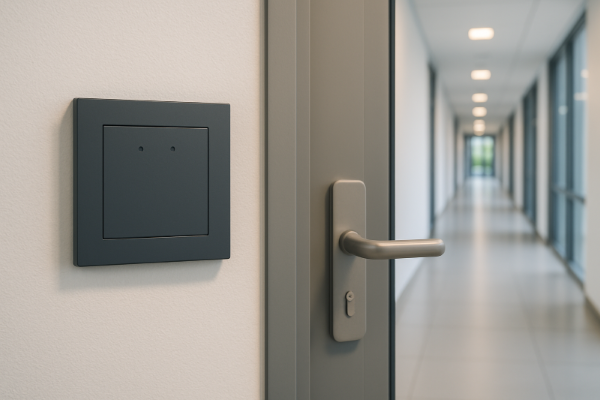

The C-WG-0205R module can be implemented in various designs (ABB, Logus, Obzor, UNICA, etc.). It allows direct control of, for example, an electromagnetic door opener via a separate output.

Technical information, connections and examples of use can be found on our wiki portal:
https://wiki.tecomat.cz/clanek/c-wg-0205s-ctecka-rfid-v-interierovem-provedeni-v-ruznych-designech
