Water supply management system - Drogobic, Ukraine


  • Country: Ukraine
  • Name: Water supply management system - Drogobic, Ukraine
  • Date: 2013-14
  • Control system: Tecomat Foxtrot
  • Software: Mosaic, SCADA Reliance
  • Implemented by: ООО ЕТА

Control system Tecomat Foxtrot was implemented in 2013 - 14 by our Ukraine partner - company ООО ЕТА as water supply management system to provide drinking water from Drogobic water wells.

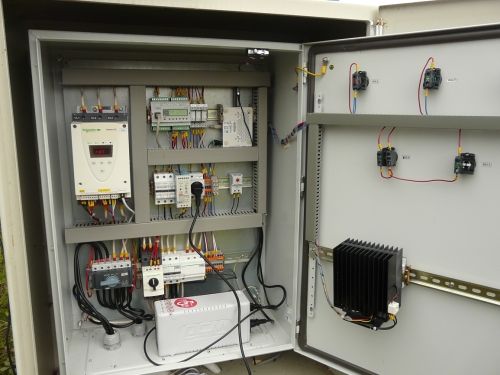

A complex system provides first level of pumping and supplying drinking water at water station. Each well is equipped by Foxtrot centrale module, which monitor water level in the well and switches on/off the pump for central water tank. All data from each water sources are wirelessly transmitted (GPRS) to water station control room. All data to be shown in real time and stored for optimization of water supply network.

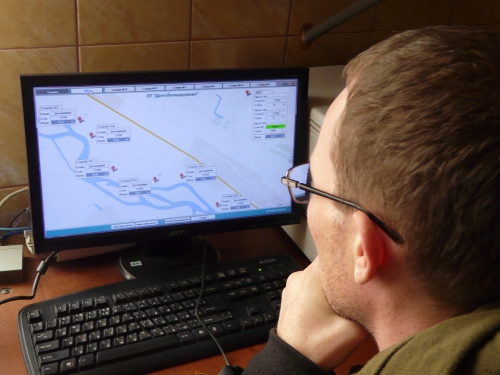

The shift chief has on-line overview of status of all pumps, quantity of water in all tanks and requirements for maintenance. All available information can be used for other tasks like water consumption pricing & invoicing etc.

In this application there is used central module Tecomat Foxtrot CP-1005 and data are collected and visualized in SCADA system Reliance.
