Control system for technologies of JELINEK furniture manufacturing plant


  • Country: Czech Republic
  • Name: Control system for technologies of JELINEK furniture manufacturing plant
  • Implemented by: Mereni a Regulace s.r.o.
  • Date: 2010
  • Control system: Tecomat Foxtrot
  • Software: Mosaic

Company "JELINEK - vyroba nabytku" s.r.o. is a traditional Czech manufacturer of furniture, fast expanding to foreign markets, especially in European Unie. At present there are more than 100 employees in the company.

Manufacturing plants of company JELINEK are fully controlled by our control system Tecomat Foxtrot.

Control system

Switching cabinet RM1

  • CP-1015 + 5 modules for TCL + modules CIB for IRC regulation of rooms and offices
  • forced ventilation of offices with recuperation, flow regulators control volume of air in offices depending on temperature and occupancy of offices
  • ventilation of background and locker rooms
  • server room ventilation

Switching cabinet RM2

  • CP-1015 + IB-1301
  • ventilation of workrooms
  • monitoring of machine operation

Switching cabinet RM3

  • power supplying of machines

Switching cabinet RM4

  • CP-1015 + 8 expansion modules CIB

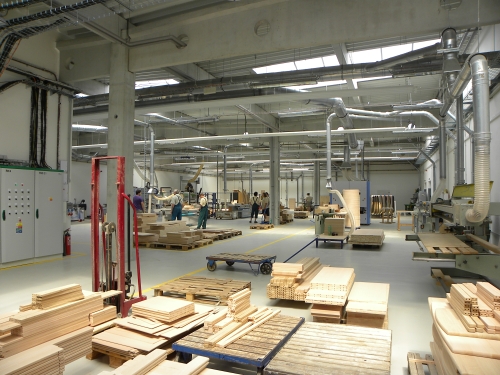

  • ventilation of manufacturing plant
  • ventilation of offices
  • control of light wells for ventilation in summer
  • control of radiate panels for heating of manufacturing plant

Switching cabinet RM5

  • CP-1015 + 8 expansion modules CIB

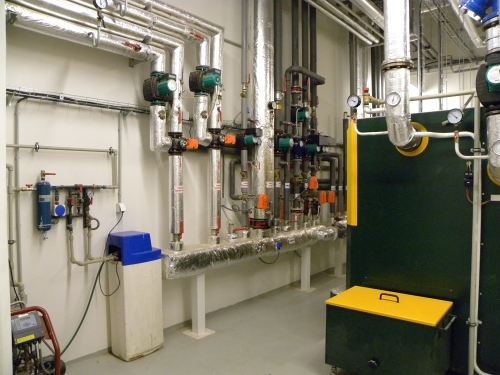

  • control of boiler room for wood waste from manufacturing
  • communication with automated boilers via Ethernet
  • control of equithermal branches, boiler pumps
  • other boiler room devices and error status signalling
