Automated grinder machine


  • Country: Czech Republic
  • Name: Automated grinder machine, Czech Republic
  • Implemented by: Jiri Novotny KASKO Praha
  • Date: 2014
  • Control system: Tecomat Foxtrot
  • Software: Mosaic

Company KASKO Praha develops and manufactures single use automated machines like grinder and milling machines.

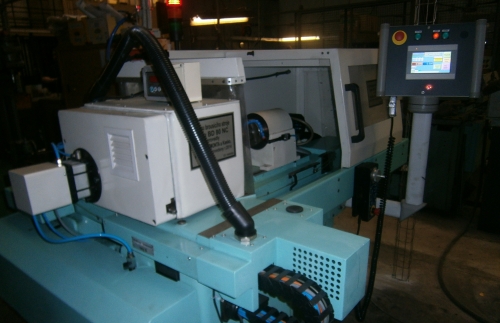

One of their references is automated grinder machine for inner grinding BD 80 NC, which is designated for grinding of cylinder and cone holes in wide operation range.

As control system for this grinder machine there is used Tecomat Foxtrot.

Electric data

Hardware modules: CP1005+FX7812, IB1301-3x, OS1401-2x, GT1753
Control: axis Z – longitudinal, axis X – transverse, hand disc for both axes
Analogs: rotation of grinder disc and hold spindle
Original machine: hydraulic
New machine: servo motion and ball screws
